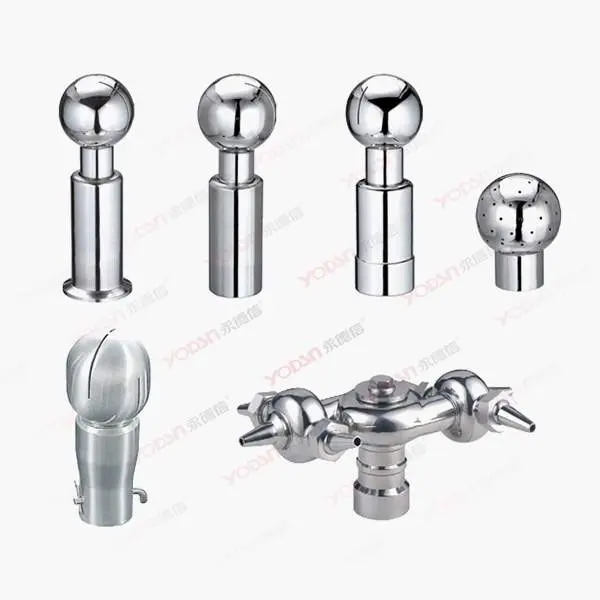

Hygiene cleaning ball

Apply

 ▪ Rotary cleaning ball: It is a kind of rotary nozzle, which uses detergent to comprehensively clean and spray the storage tank. Because this device uses a small amount of washing liquid under low pressure, it is an effective substitute for the traditional fixed spray ball. Double ball bearings are used in the rotary head, which makes this type of cleaning ball series suitable for all sanitary and industrial cleaning applications, including the cleaning tasks of all sanitary and industrial supplies such as tanks, reactors and containers.

 ▪ Fixed cleaning ball: It is a fixed spray ball used to clean storage tanks in the food and beverage industry. The fixed spray ball is used for less demanding cleaning tasks.

 Technical parameter

 ▪ Weight: depending on the specific specifications

 ▪ Lubrication: self-lubrication through the cleaning liquid

 ▪ Work pressure: 1-3Ba r

 ▪ High working temperature: 95° C

 ▪ High ambient temperature: 140° C

 ▪ Wetting radius: 3m large

 ▪ Jet cleaning radius: large effective radius 2m

 ▪ Interface: welded, quick-installed and threaded

 Operating principle

 ▪ Rotating cleaning ball: The cleaning liquid rotates the cleaning ball nozzle through its own power, and the fan-shaped jet will form a vortex in the whole storage tank reaction dish, thus effectively leaving the residual product on the surface of the container and achieving a cleaning effect.

 ▪ Fixed cleaning ball: The cleaning ball forms a spray flow to the surrounding area through the nozzle of the cleaning ball, so as to leave the residual products on the surface of the container and achieve a cleaning effect.

 Design standards

 ▪ The cleaning ball series produced by Y o d s n meet DIN, 3A, SMS, ISO/I D F and other production standards.

 Material

 ▪ Connector: 304/31 6 L

 ▪ Nozzle: 304/31 6 L
