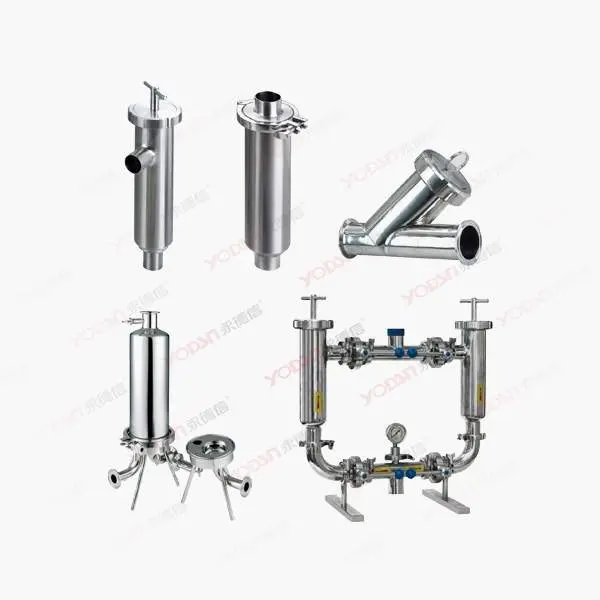

Sanitary grade filter

Apply

 ▪ Sanitary-grade filters are mainly used to protect pumps, instruments and other equipment from working normally. Due to its compact structure, strong filtration ability, small pressure loss, convenient maintenance and other characteristics, it is widely used in beverages, pharmaceuticals, dairy products and other fields.

 Operating principle

 ▪ The filter is basically composed of a filter with inlet and outlet. The sieve is installed inside the filter, and the sieve retains all particles equal to or greater than the mesh. When the pressure difference between the front and rear of the filter exceeds the requirements or the filter element is damaged, you only need to take out the filter element, clean it or replace the filter element, and reinstall it to use it.

 Texture of wood

 ▪ Shell: 3 0 4 / 31 6 L

 ▪ Punching plate filter: 3 0 4 / 31 6 L

 ▪ Metal mesh filter: 3 0 4 / 31 6 L

 ▪ Sealing ring: E P D M (standard)

 ▪ Internal and external surface treatment: R a≤0 . 8μm

 ▪ Cartridge: 304/316L

 ▪ Metal mesh: 304/316L

 ▪ Perforated plate: 304/316L

 ▪ Gasket: EPDM

 ▪ Inner polish: Ra≤0.8μm
